Connecting an iPhone to a 2005 Comand System

[cumblechook22]

Greetings, gentlemen. I own a 2005 S320CDi equipped with the regular Comand system. The package includes a phone holder designed for a Nokia 6310i, however I would want to connect my iPhone 12 to it in order to use hands-free functionality. Upon activating the Bluetooth feature on my phone and Comand, it successfully detects my phone and prompts me to provide a code. Upon entering the code 62872, as suggested in a previous post, my phone prompts me to enter a PIN number. When I enter the PIN number for my phone, Comand displays a message stating that it is not authorised. What is eluding my understanding?
Do I need a Bluetooth dongle or Bluetooth receiver (whichever is applicable)? The Bluetooth functionality in Comand seems to be functional as it successfully detected my phone. However, it fails to establish a pairing connection with it.
Any suggestions would be much appreciated.

[bvlenci]

In order to proceed, you will need phone preparation, which can be identified by the presence of a connection in the central armrest, as well as a Bluetooth puck.
The device you are seeing is only designed for Bluetooth connectivity with a headset.
Please be aware that it is not possible to play music using Bluetooth on this particular system.


[cumblechook22]

Thank you for that, bvlenci. I will conduct an investigation.

[SkippyTom]

When connecting your phone to your COMAND system, you will need to use the same pairing code for both devices. It is important to note that any code may be used for this purpose. The typical procedure for connecting two devices that are equipped with a display and a keyboard using Bluetooth. Less complex devices use a static pin code, which is only entered on the "other" device.

Unfortunately, you have difficulty connecting the phone to an outdated COMAND system, resulting in a lack of enjoyment. While you have the option to send visiting cards, it is important to note that the iPhone does not allow this feature. The head unit does not support Bluetooth hands-free operation.

As previously said, you need a bluetooth adaptor. A vehicle manufactured in 2005 should be equipped with a Universal Hands-Free Interface (UHI) kit. The cradle for the 6310i phone should be removable, allowing you to replace it with a Bluetooth adapter. For iPhone compatibility, use the Hands-Free (HF) profile adapter, since the iPhone does not support the SIM Access Profile (SAP) used by the other kind of adapter.

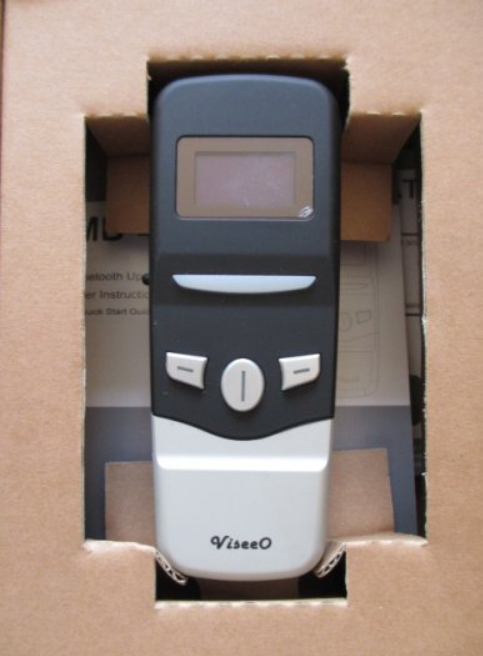

To connect the 6310i phone to a cradle with a curly cable, you would need a ViseeO bluetooth adapter as a replacement for the 6310i phone.

Subsequently, you would connect your phone to the Bluetooth adapter, rather than the head unit.



[cumblechook22]

Thank you for providing the information. I will conduct a thorough investigation.

[Rojoires]

The first iPhone was introduced around two years after the production of your vehicle. In my 2006 C class, there is a UHI device connected to the 'hot shoe' located in the armrest. Despite having only Audio 20, my car is equipped for telephony and successfully connects with my iPhone 13. However, the whole user experience seems outdated and somewhat unpleasant.

The keypad on the dashboard is non-functional, hence the only method to initiate a call is by scrolling on the dashboard. Furthermore, the audio output of the call is limited to a single speaker located in the passenger footwell. Personally, I am unperturbed by this since I get satisfaction from driving without engaging in conversation with others.

If you need a fully functional phone, there are other alternatives available. In my view, purchasing a costly MB UHI (it should be noted that they may all seem similar but are really different) is not a wise choice.



commandonline.co.uk, which is a sponsor on this platform, will provide you with guidance that aligns with your specific requirements.

[cumblechook22]

Are you familiar with the term "lads"? All of this seems needlessly intricate and costly. I just want the capability to respond to phone calls while operating a vehicle. My friend has a functional 6310i. Perhaps I will just get a SIM card. I must admit that I am technologically challenged! (You made an incorrect automobile purchase then!)

[Rojoires]

It is not feasible.



[clk320x4]

It is simple.

Acquire one, connect it to a power source, establish a connection between the phone and the device, and it will operate flawlessly.
It occurred on my previous CLK.

[DSM10000]

In this location, we now have a functioning 2G network with excellent coverage. However, cellular carriers are interested in acquiring this bandwidth in order to allow children to stream films, which would use a significant portion of the network capacity. Despite this, they would only be paying a fraction of the cost (less than 10%) due to the flat rate data plan. However, the loss of MB telephony is not the most significant problem.



[cumblechook22]

What will be ineffective? A vintage analogue telephone? Is it because there is a lack of network coverage?

[keithmerc220]

Similarly, it functioned well on my previous W211. They are rather affordable.

[ianwh4]

Do the US and UK W220 versions use comparable systems? The command system lacks an auxiliary connector or Bluetooth functionality, leaving you with the only option of using an FM transmitter. Although not optimal, they are effective.

[Matt865]

Another viable alternative that has had positive results for me in the past is Mr12volt. It conveniently connects to the MOST ring and provides track data upon request, in addition to including a built-in microphone for phone conversations.

[Matt865]

https://www.mr12volt.com/en-gb/collections/mercedes
